Description

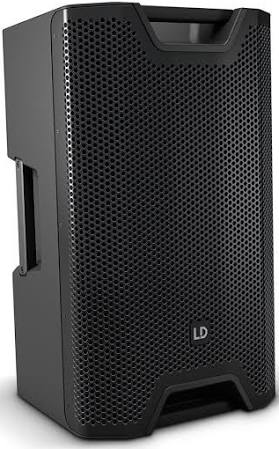

This full-range loudspeaker impresses with its outstanding sound, even at low frequencies. The ICOA 15 A by LD Systems is a genuine all-rounder that offers unparalleled features for its class. Its coaxial design, rotating, BEM-optimised CD horn and extensive and precisely calibrated DynX DSP presets make this powered 15″ loudspeaker exceptionally flexible.
The outstanding bass reproduction from the horn-loaded woofer makes the LD ICOA 15 A the ideal choice for musicians, bands, entertainers and dance schools. It also allows DJs to play sets without the need for a subwoofer. Deployed vertically, the speaker impresses as a satellite; horizontally, it’s excellent in suspended systems or as a floor monitor. The efficient class-D power amplifier delivers 128 dB max. SPL and 1200 W peak performance.
Drawing on DynX DSP technology by LD Systems, the speaker delivers perfect performance with maximum clarity and power under all conditions. 4 presets, a 3-band EQ and a delay function facilitate optimal adjustment of the sound to the venue conditions. The 2 line/mic input channels with individual gain controllers, plus mono mix output, allow a variety of signal sources to be connected.
Thanks to its shock-resistant front grille and ideal 55° tilt angle, the LD ICOA 15 A is also outstanding as a floor monitor. Placed vertically, the 36 mm dual tilt stand attachment offers the choice of a 0° or 5° tilt angle for optimally adapting the system to the local acoustic environment.
Extensive and smart accessories for installation and transport are optionally available. 4 aluminium handles with an ergonomic rubber surface provide optimal grip when carrying the speaker
RMS: 300 W
Peak power: 1200 W
Frequency response: 48 – 20000 Hz
Crossover frequency kHz: 2 kHz
Max. SPL (peak): 128 dB
Protection circuits: Multiband limiter, over voltage, over-current, thermal overload
Controls: 2 x gain , On / off switch , Rotary/push encoder
Indicators: LC display
Mic/ line inputs: 2
Mic-/ Line Input Connectors: 6.3 mm jack Combination sockets (symmetrical) , XLR
Line inputs: 1
Line input connectors: 3.5 mm TRS
Line outputs: 1
Line output connectors: XLR
Operating voltage: SMPS
Power consumption: 150 W
Ambient temperature ( in operation ): 0 – 40 °C
Operating voltage: 100 V – 240 V AC / 50 – 60 Hz
Relative Humidity: < 80 %, not condensing
Fuse: T4AL 250 V
Cabinet material: polypropylene
Cabinet construction: vented
Tripod flange: 32 °F , 36mm flange, 5°
Monitor angle: 55 °
Width: 416 mm
Height: 695 mm
Depth: 415 mm
Weight: 24.3 kg
